AM 5

Description

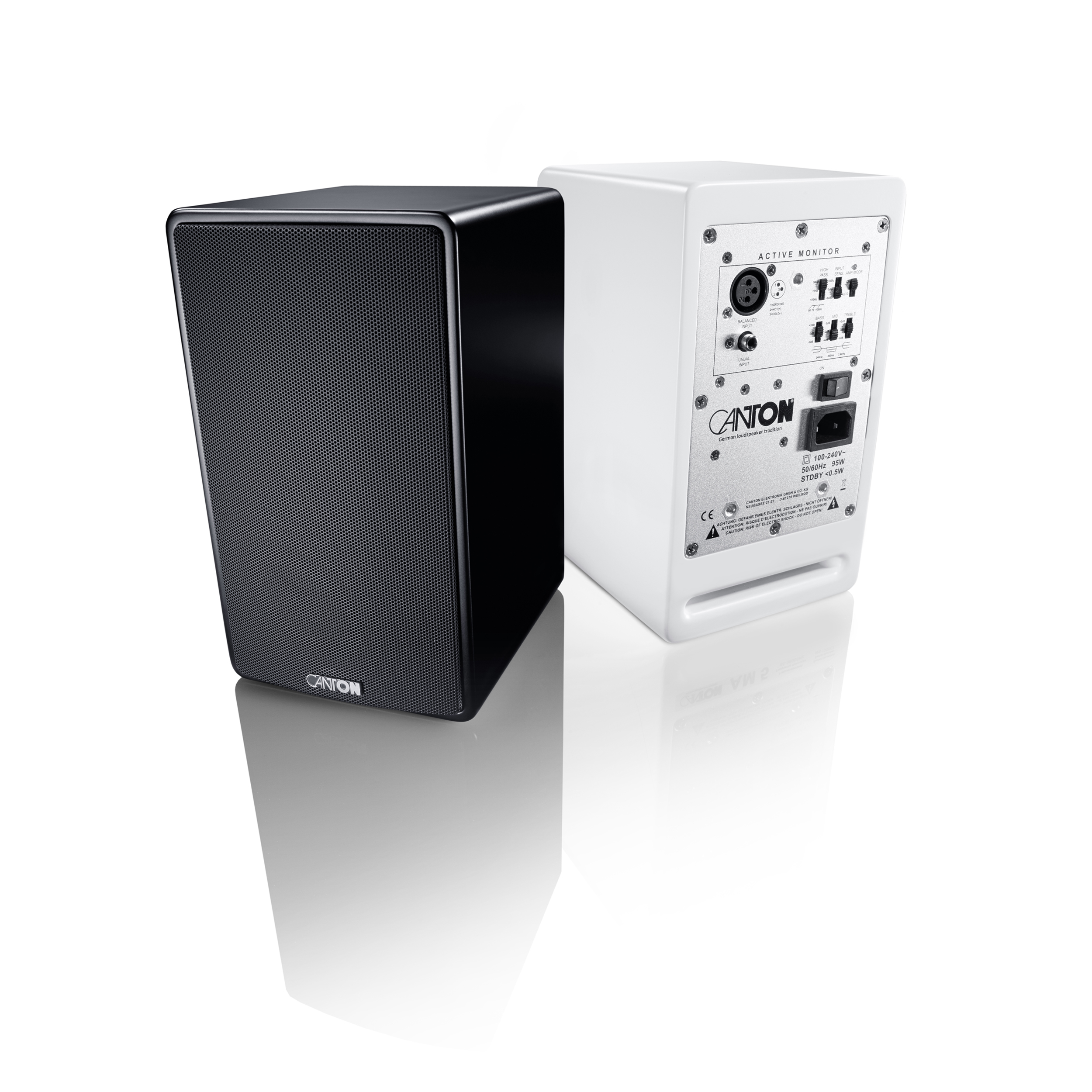

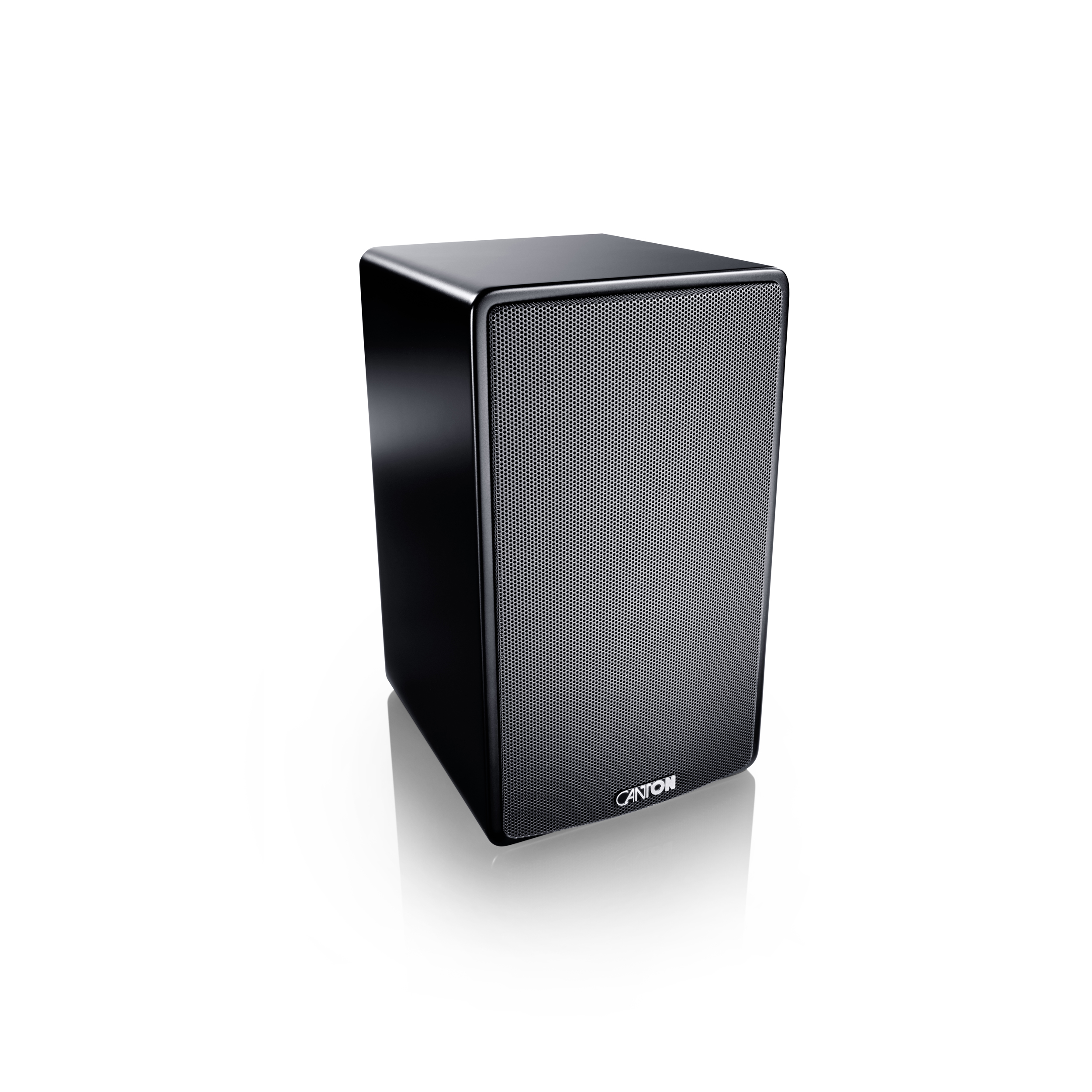

Professional studio monitor

Thanks to its linear frequency, the low-distortion playback and studio quality connection and installation options, the AM 5 is the perfect nearfield monitor. Possible areas of application include recording and radio studios as well as sophisticated home recording set-ups. The AM 5 is easy to use and built to last. Despite its compact dimensions it offers powerful playback of bass frequencies up to 50 Hz.

Robust presentation loudspeaker

The high performance AM 5 Active Monitor with its outstanding voice clearness is the optimal choice for presentation rooms and telephone conferences. The switchable high-pass filter can be used to suppress unwanted low frequency noises. Several AM 5 devices can be combined to achieve optimal sound quality, depending on the size of the room.

Highly effective multimedia loudspeaker

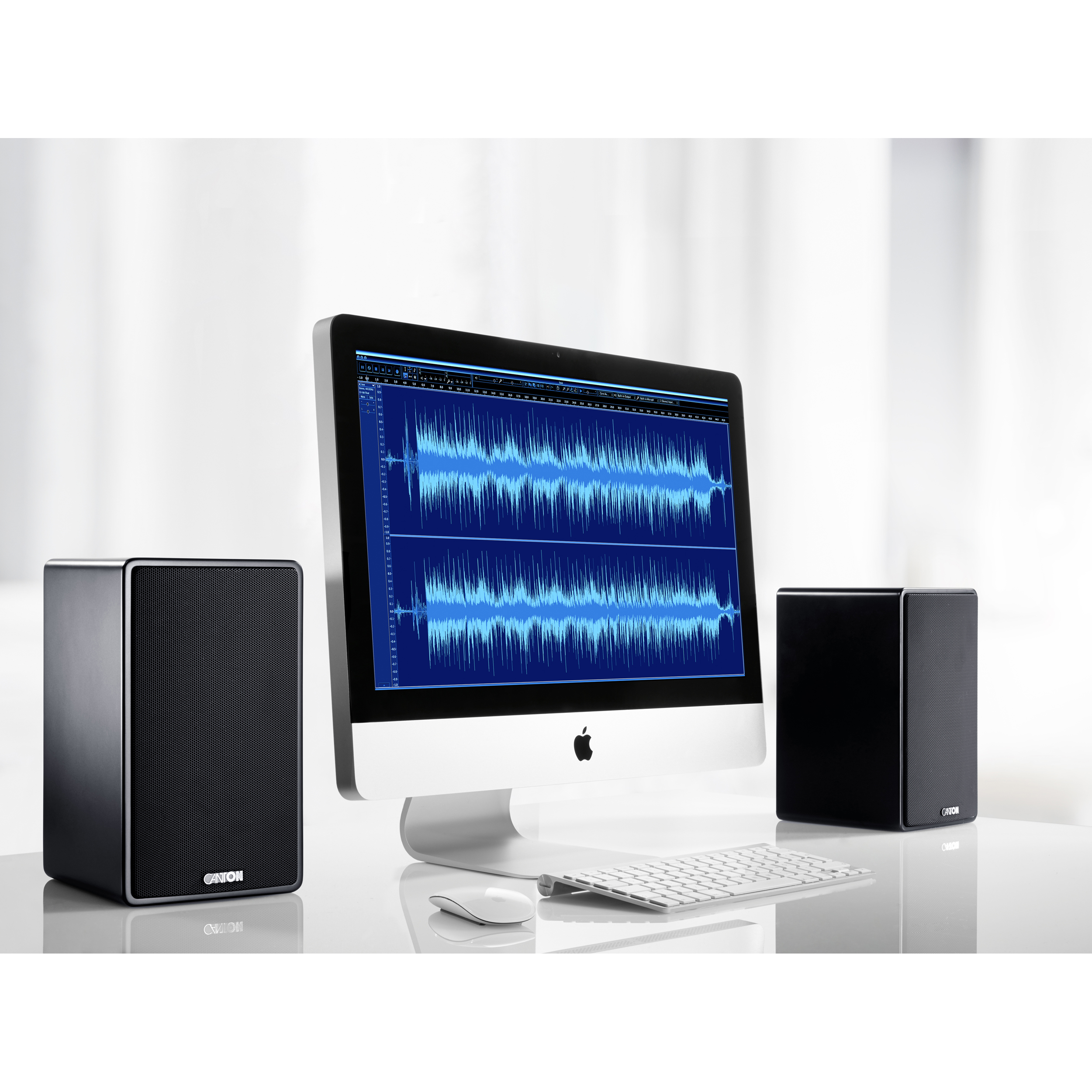

The AM 5 Active Monitor is the ideal Plug&Play sound solution for PC, MAC, laptop and tablet. It turns PC games into an intensive experience and makes every streaming client and music server an audiophile stereo system. It can also be combined with virtually all smart phones and MP3 players. The integrated switchable sound adjustment always ensures the best possible playback.

Top quality HiFi and TV loudspeaker

Equipped with all the virtues of an active studio monitor, the AM 5 is also a fully-fledged HiFi loudspeaker and an outstanding TV companion. When connected directly to the TV via the headphones jack, it can be easily controlled using the TV remote control and its impressive sound optimisation turns every film into great cinema. An optional bracket makes it perfect for wall mounting next to flat screen TVs.

Driver technology

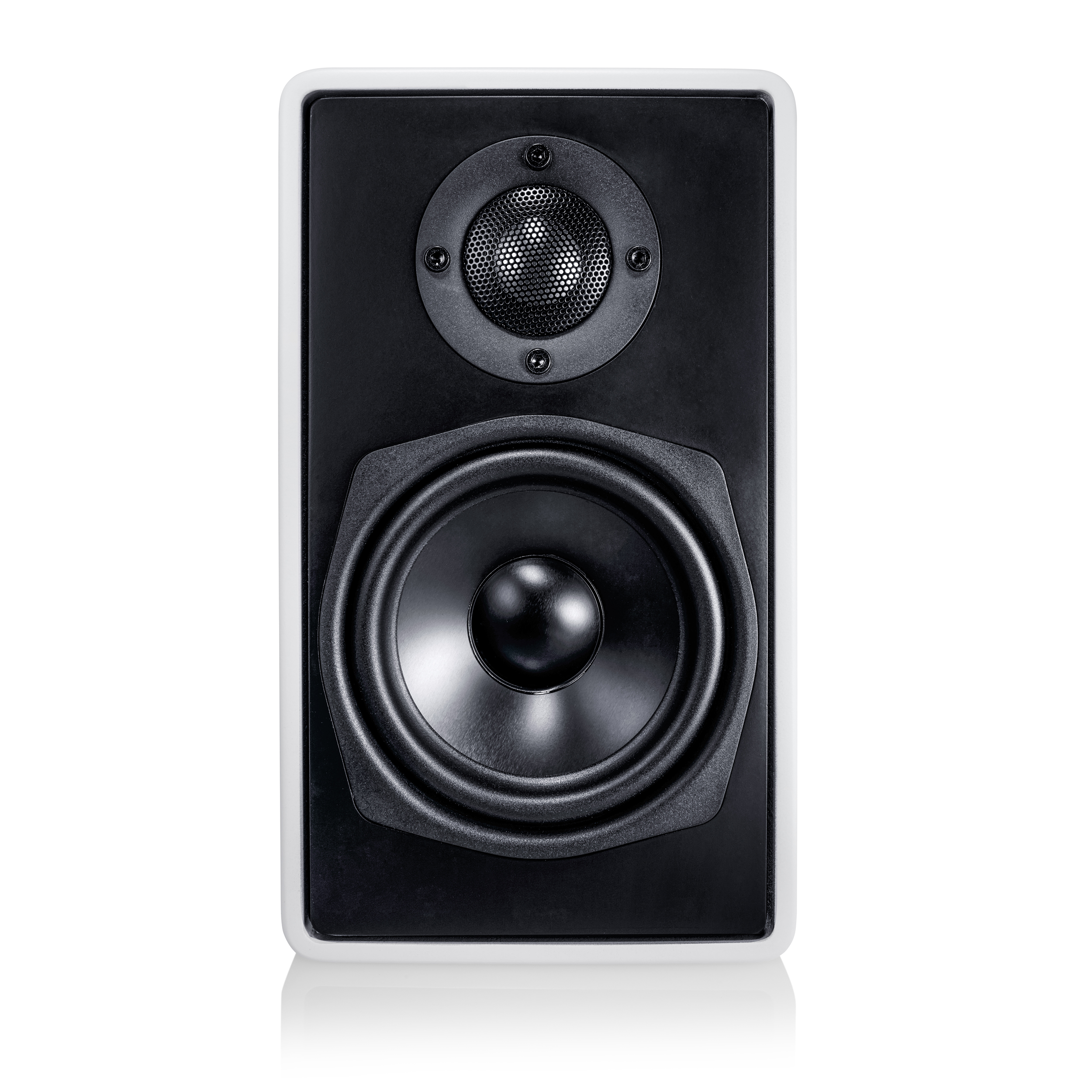

The tweeter system of the AM 5 is fitted with a 25 mm aluminium dome. The ultra-light wave system is driven by a high performance neodymium magnet. The wave guide built into the front plate supports the controlled dispersion characteristics of the tweeter.

Connections

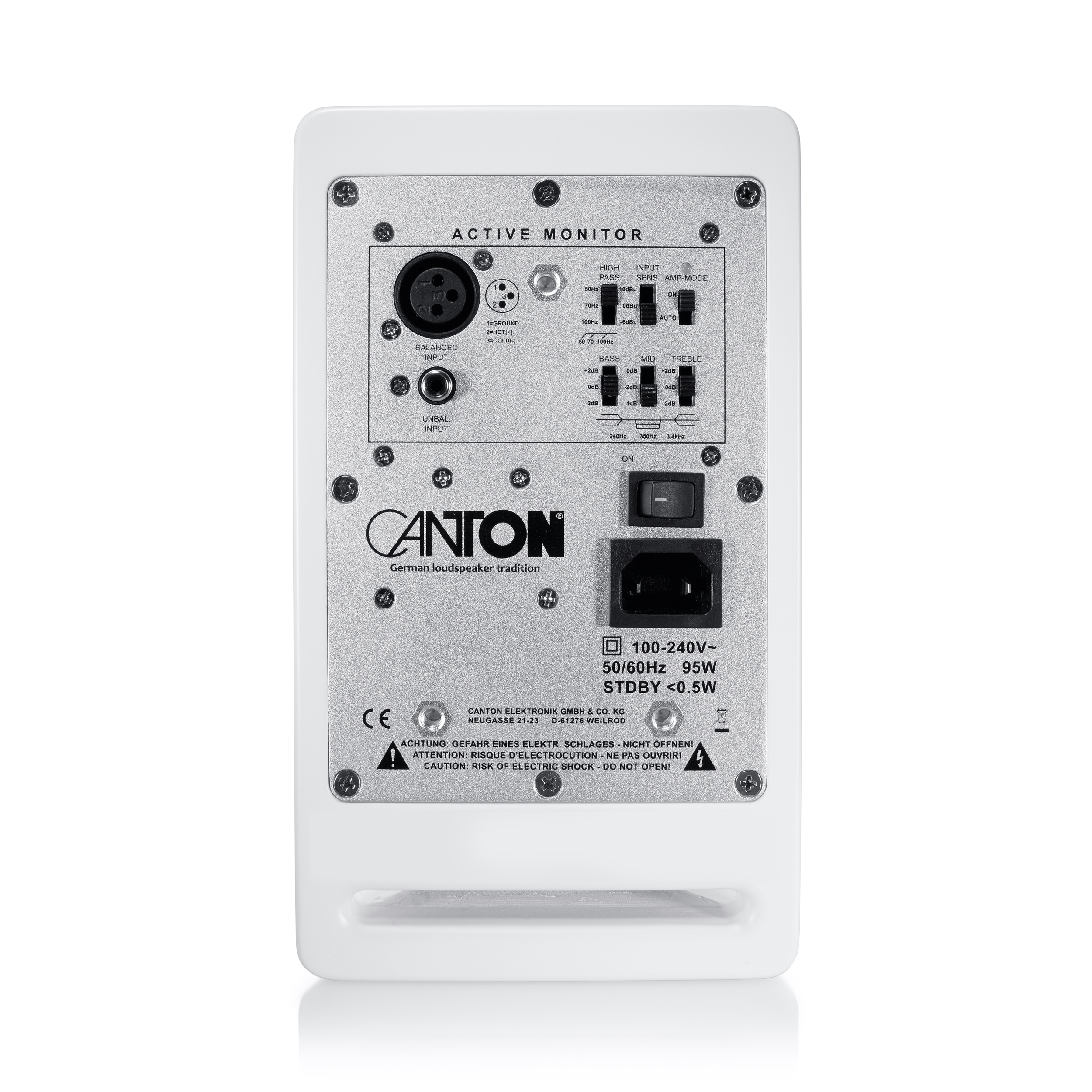

Equipped with an interference-free, symmetrical XLR input (e. g. for mixing desks) and a universal cinch input, the AM 5 offers connection options for professional and home use.

Settings

The integrated high-pass filter allows bass playback to be limited at 50, 70 or 100 Hz. The switchable input sensitivity enables different signal sources to be adapted to the output voltage. The automatic on/off switch with LED display can be switched to permanent operation.

Frequency adjustment

Three switchable sound settings enable acoustic adjustments to be made in the bass, midrange and treble frequencies. The filters have been designed to ensure an optimal sound experience in all possible adjustment and application options.

Type	Active speaker
Engineering Principle	Bass reflex system
Nom./Music power handling	80 / 100 watts
Sound pressure level	97 dB SPL
Input sensitivity	10 dBu (2,45 mV), 0 dBu (775 mV), – 6 dBu (390 mV)
High-pass filter	50 Hz, 70 Hz, 100 Hz
Treble adjustment	+ 2 dB, 0 dB, – 2 dB
Midrange adjustment	0 dB, – 2 dB, – 4 dB
Bass adjustment	+ 2 dB, 0 dB, – 2 dB
Signal to Noise Ratio (SNR)	95 dB
Common mode rejection (XLR)	71,5 dB
Frequency response	50…38.000 Hz
Crossover frequency	3.000 Hz
Woofer	1 x 118 mm (4,6”), aluminum
Tweeter	1 x 25 mm (1”), aluminum
Connection	1 Cinch (RCA) 1 XLR (balanced)
Features	active crossover network DSP with fully digital 24 bit signal processing Automatic on/off switch frequency response adaption (bass, midrange, treble) HDF-cabinet integrated limiter with soft clipping wide range switch mode power supply
Dimensions (WxHxD)	14 x 24 x 16 cm (5.5” x 9.4” x 6.3”)
Weight	3.1 kg
Power consumption	0.40 watts
Available accessories	Wall and ceiling brackets Cantomount AM Wall and ceiling brackets Cantomount U
Carton Content	Canton AM 5 Power cord Equipment Feet Manual
Packaging	39 x 24,5 x 23,4 cm (15,4″ x 9,7″ x 9,2″)
Weight including packaging	4,13 kg
