AR-400

Description

Speakertype

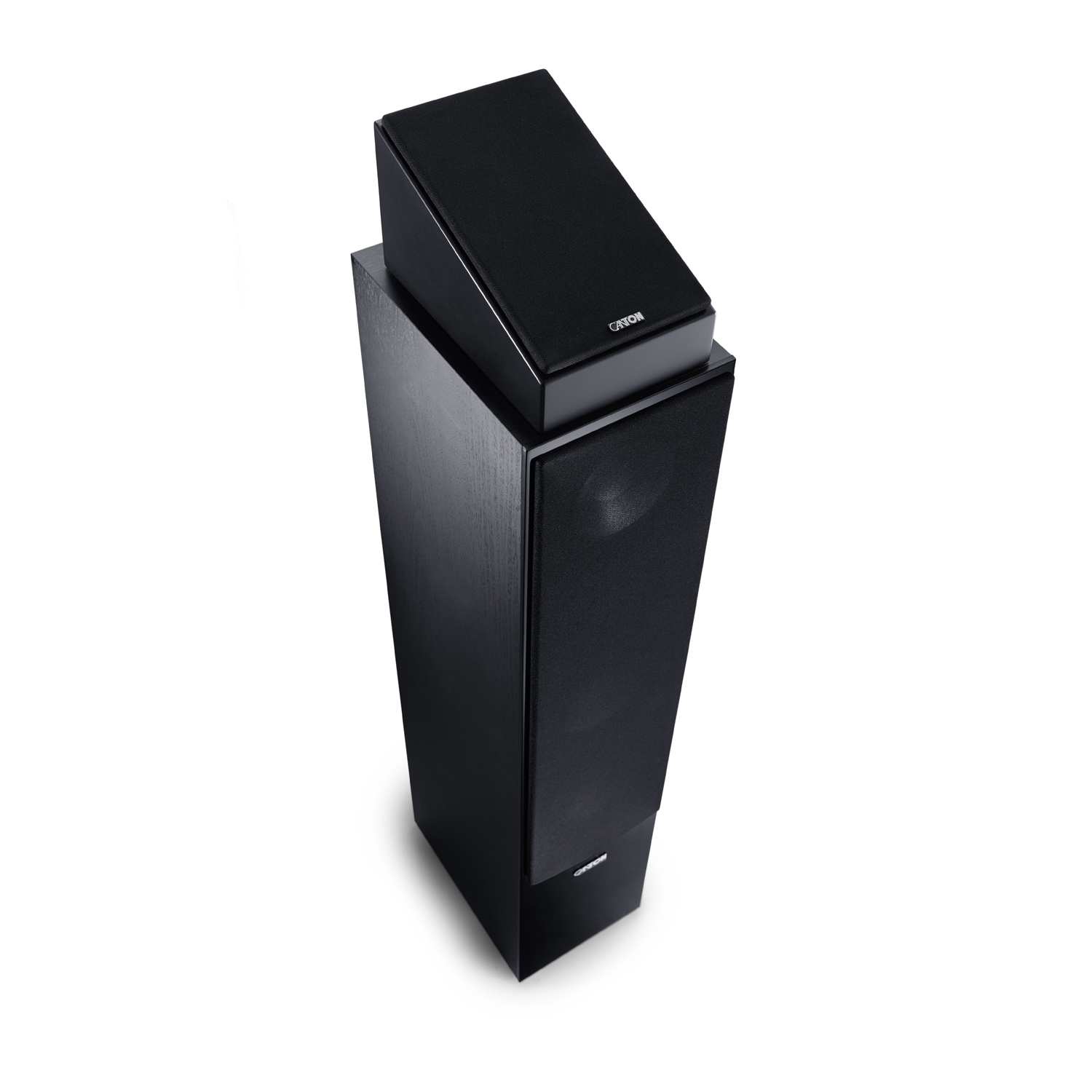

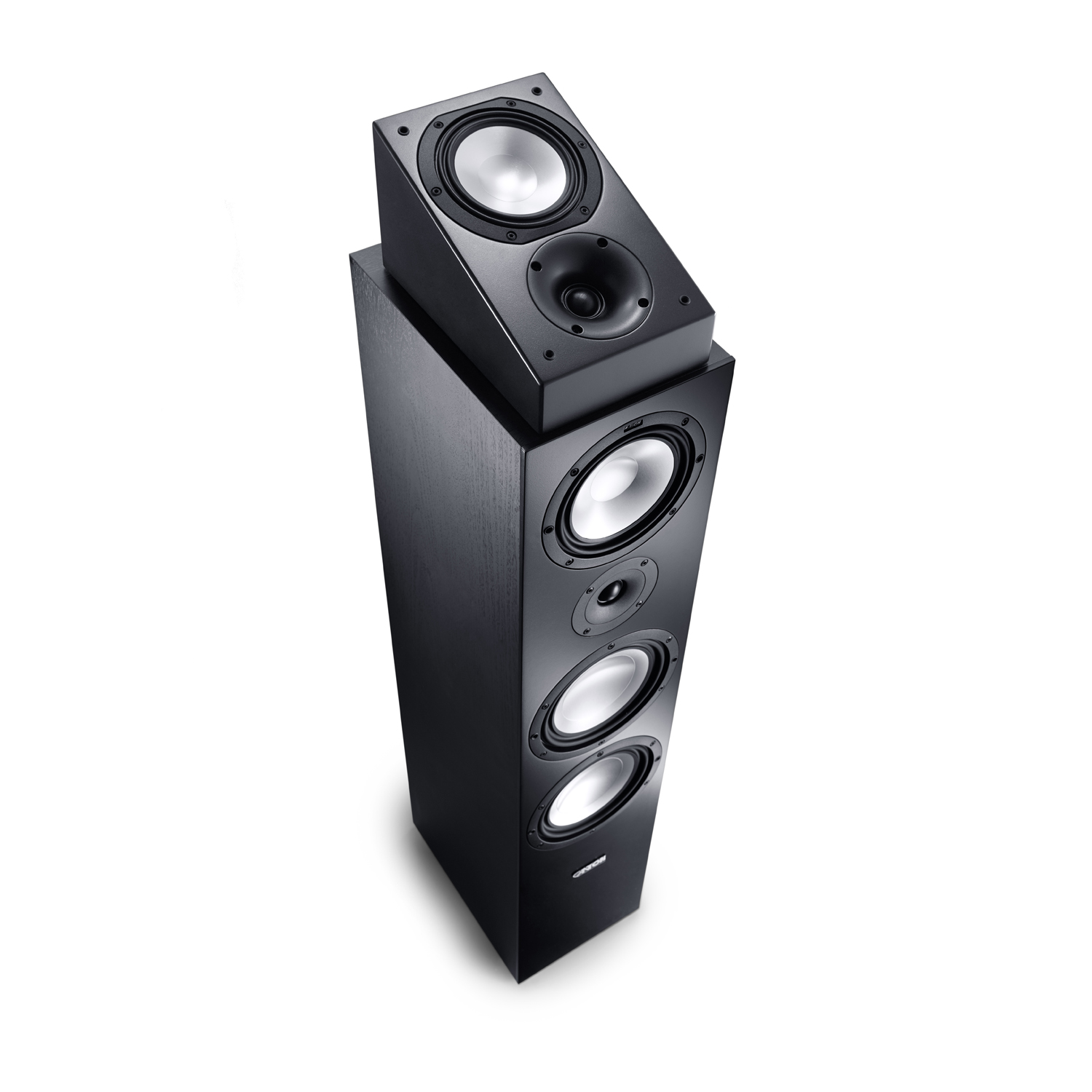

AR-400 is a 2-way compact speaker which is “Dolby Atmos Enabled”. It can be placed on top of an existing Front- or Rear- Floorstanding or compact speaker of your Home Cinema system or as an OnWall speaker with the integrated wallmount.

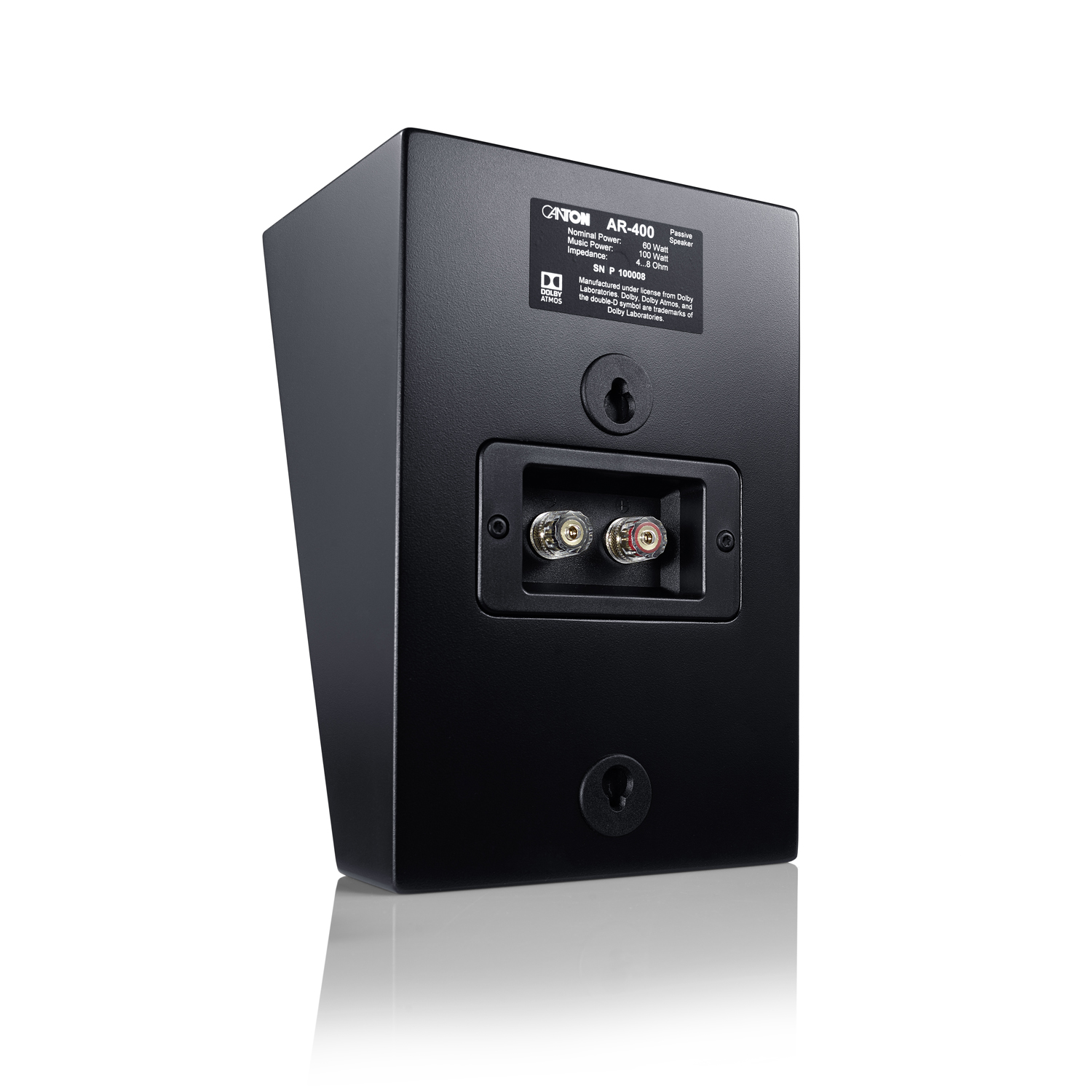

Single-Wiring Connection Terminal

For perfect, long lasting sound the high quality connection unit is fitted with robust screw terminals. Perfectly concealed in the cabinet (Hidden Connection), this allows it to be installed close to the wall.

High quality front covers

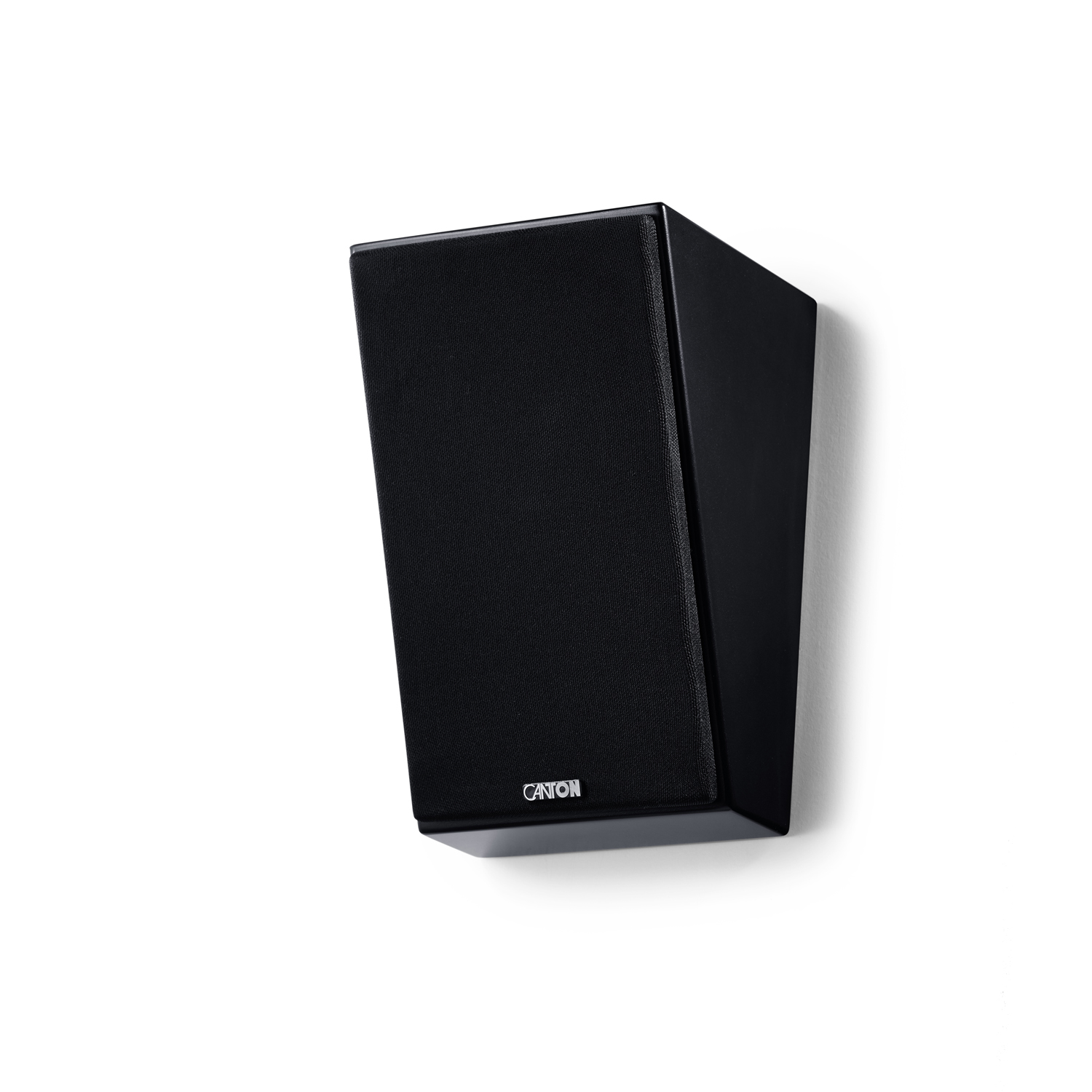

The robust and acoustically neutral fabric covers hide the technology from view and fit neatly over the baffle. The black version of AR-400 has a matching black fabric grill, the white version a white fabric grill.

Stereo- or Effectspeakers

In addition to attachmentspeaker on top your floorstanding- or compact speaker, AR-400 is thanks an integrated wall mount perfect for hanging on the wall. As an OnWall speaker AR-400 can be used as a Stereo- or effectspeaker in an existing system or only as a pair of stereo speakers.

Dolby Atmos Enabled Speaker

AR-400 is an “Dolby Atmos Enabled Speaker” and with that special construction it allows a vertical Sounddimension. The result is real 3D-Sound. Listen to airplanes flying over you, rustling leaves over your head or rain pelts on your shoulders.

Surface

The cabinets of AR-400 are available in matt lacquer in black and white with removable fabric cover.

Type	Dolby Atmos® Multifunction-speaker
Engineering Principle	2-way closed
Nom. /Music power handling	60 / 100 watts
Frequency response	50…30.000 Hz
Crossover frequency	3.200 Hz

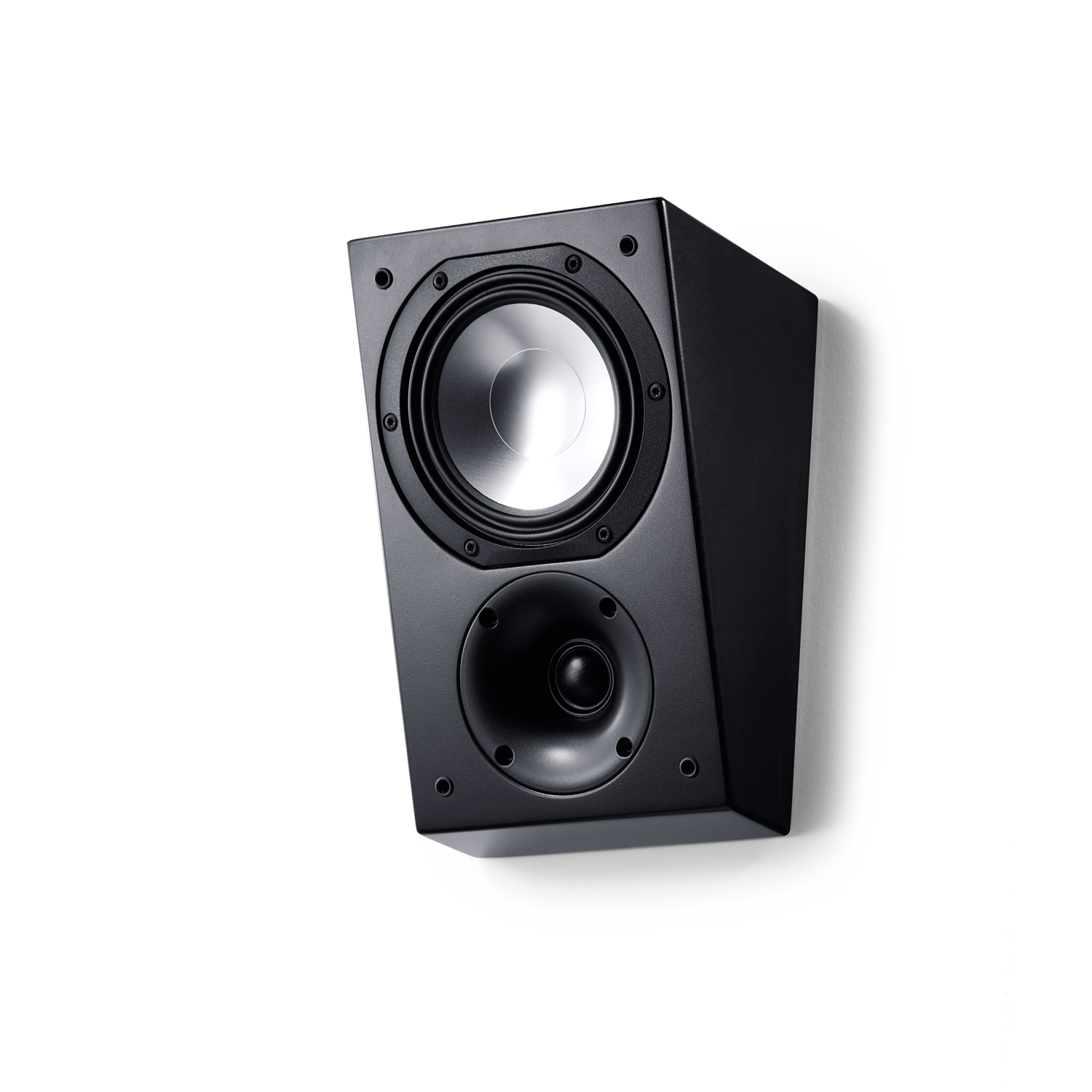

Woofer	1 x 154 mm (6,1″), aluminium (Wavesurround)
Tweeter	1 x 25 mm (1″), fabric
Nominal Impedance	4…8 ohms
Special Features	Dolby Atmos® technology Reflection speaker for floorstanding- and compact speakers Integrated wallmount for use as a Stereo Sound effect speaker Removable fabric cover
Dimensions (WxHxD)	17 x 26 x 14.5 cm 6.7″ x 10.2″ x 5.7″
Weight	3.6 kg
Carton Content	Canton AR-400 (Pair) Equipment feet Fabric grill Manual
Packaging	25 x 50,5 x 38,5 cm (9,8″ x 19,9″ x 15,2″)
Weight including packaging	7,8 kg
