Atelier 700

Description

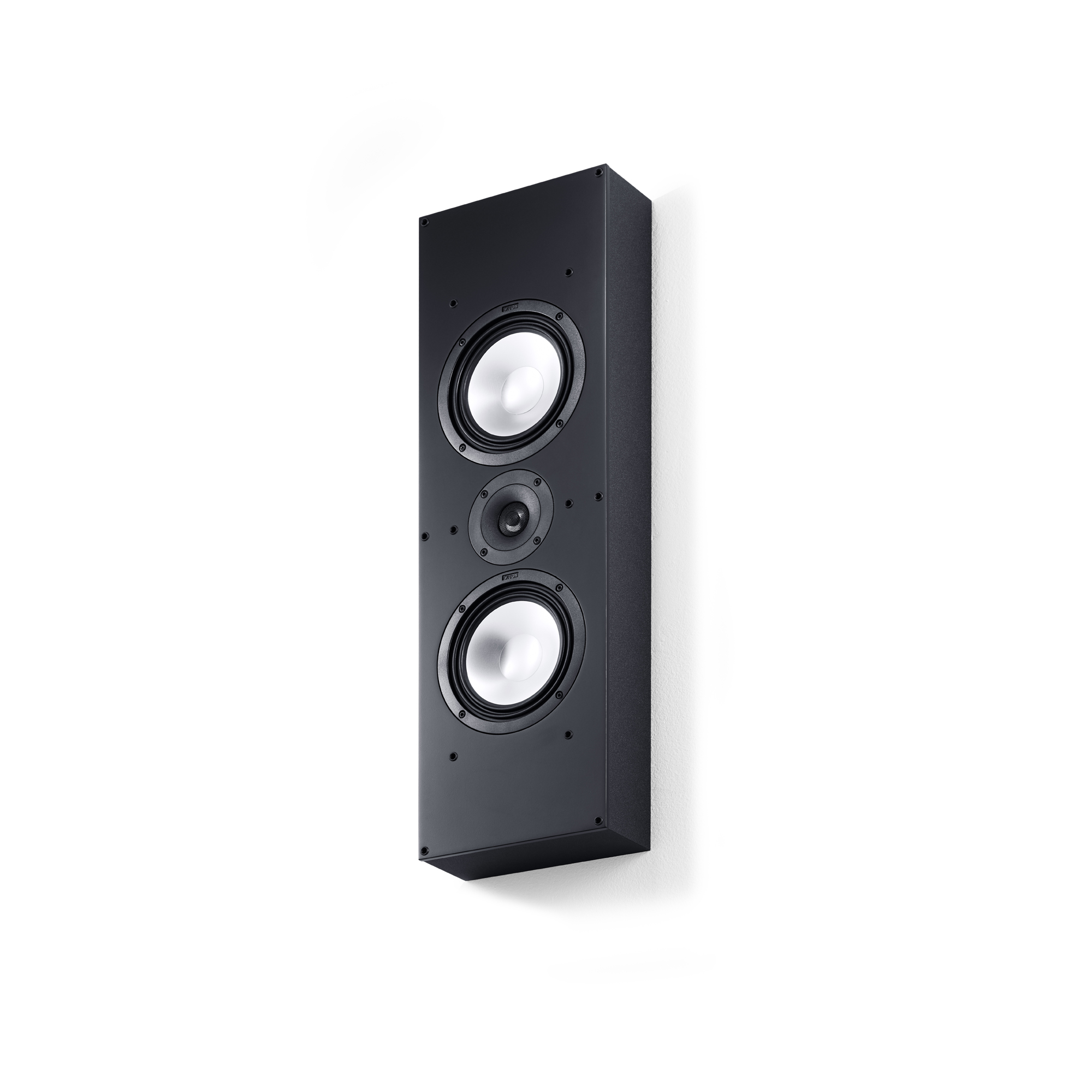

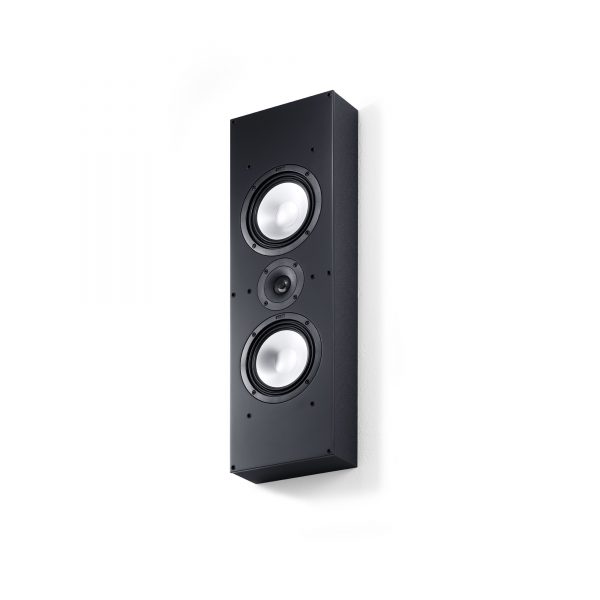

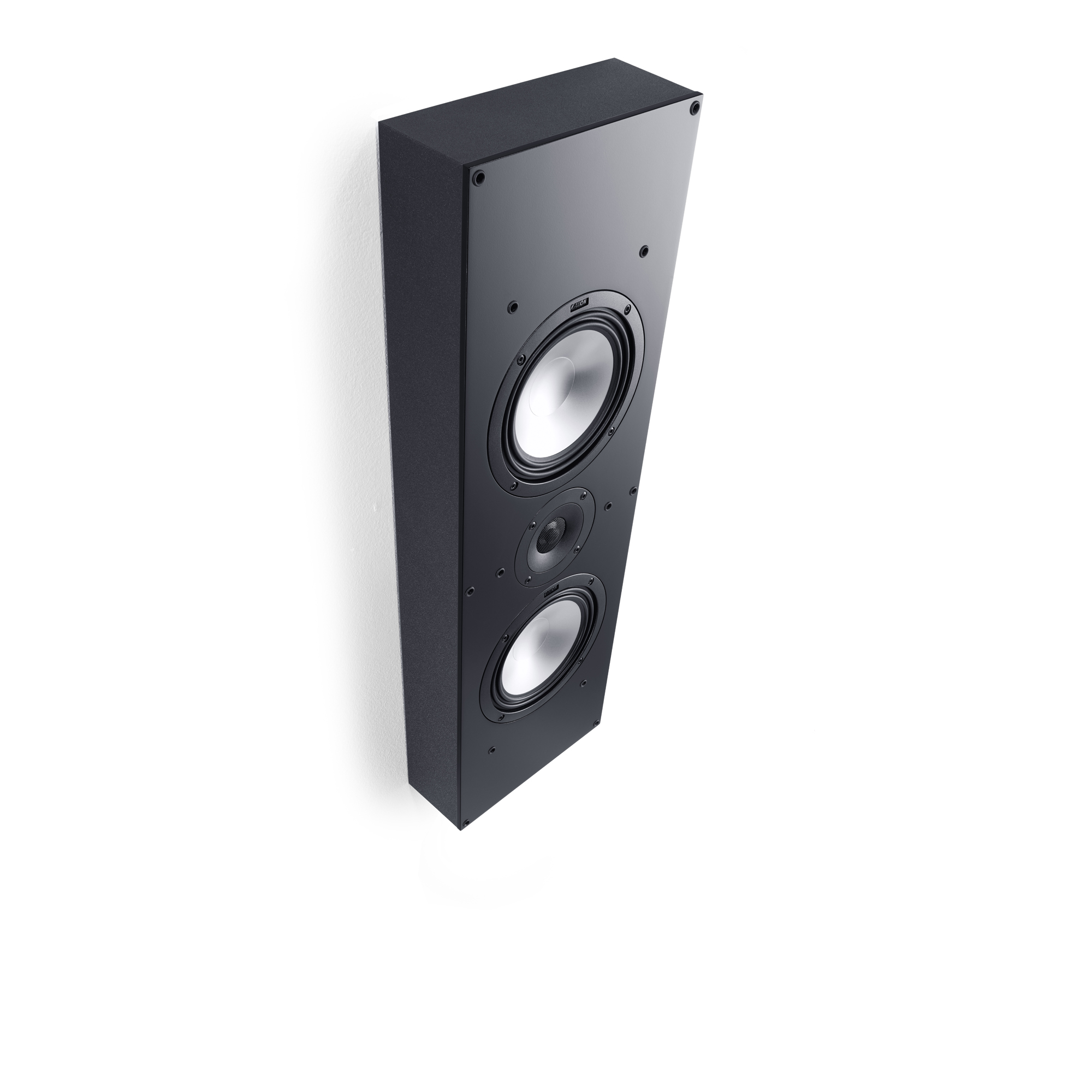

Elegant OnWall installation

Thanks to their slim design, at less than 10 cm deep the loudspeakers of the Atelier Series can be hung perfectly and seamlessly on the wall. Installation is made extremely easy due to the cabinet’s integrated wall mount.

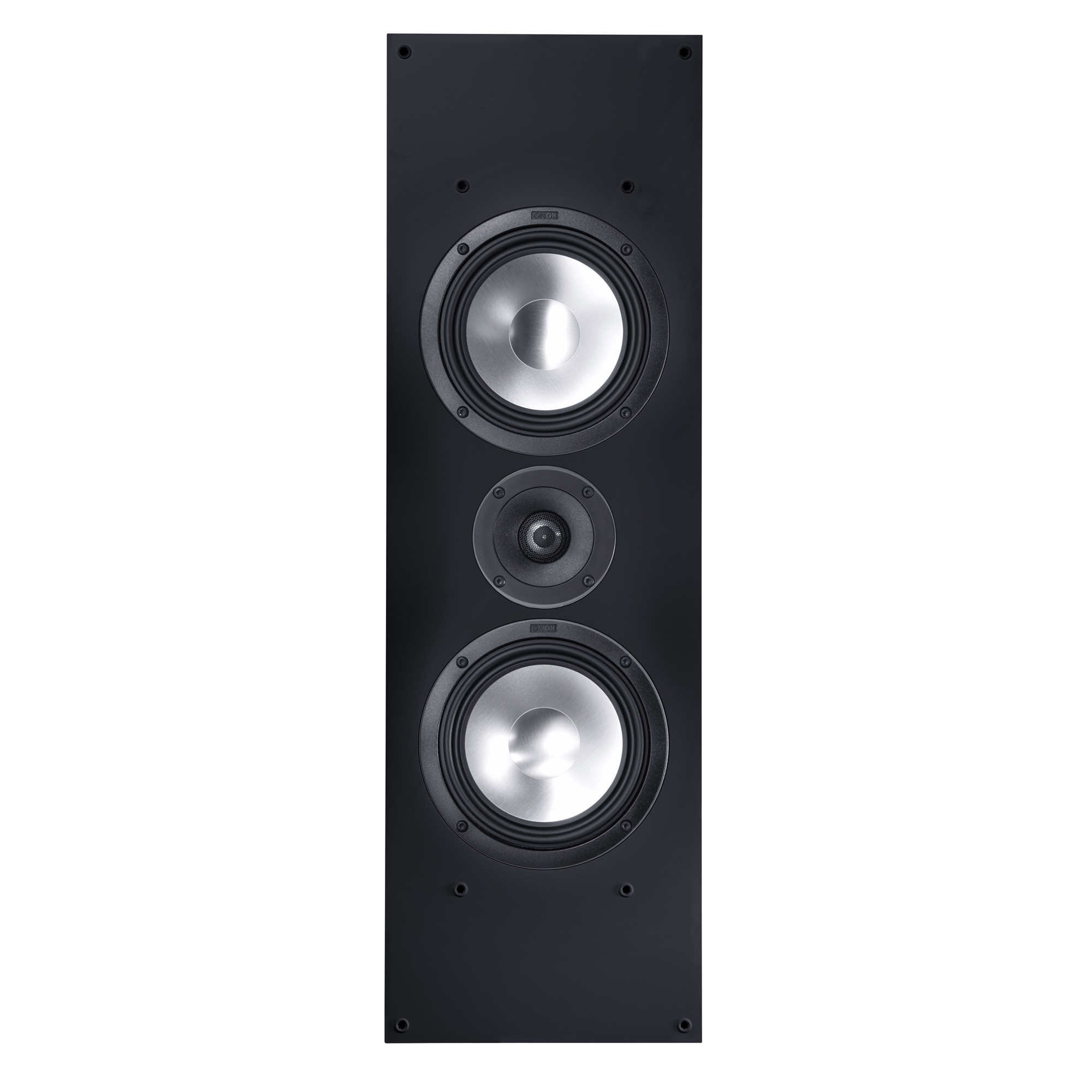

Woofer system with wave surround

A powerful magnetic drive paired with an oscillation system consisting of an aluminium membrane and the wave surround guarantees solid bass playback. The 300, 500 and 700 models also have an additional passive driver, which allows reproduction of deeper frequencies down to 35 Hz.

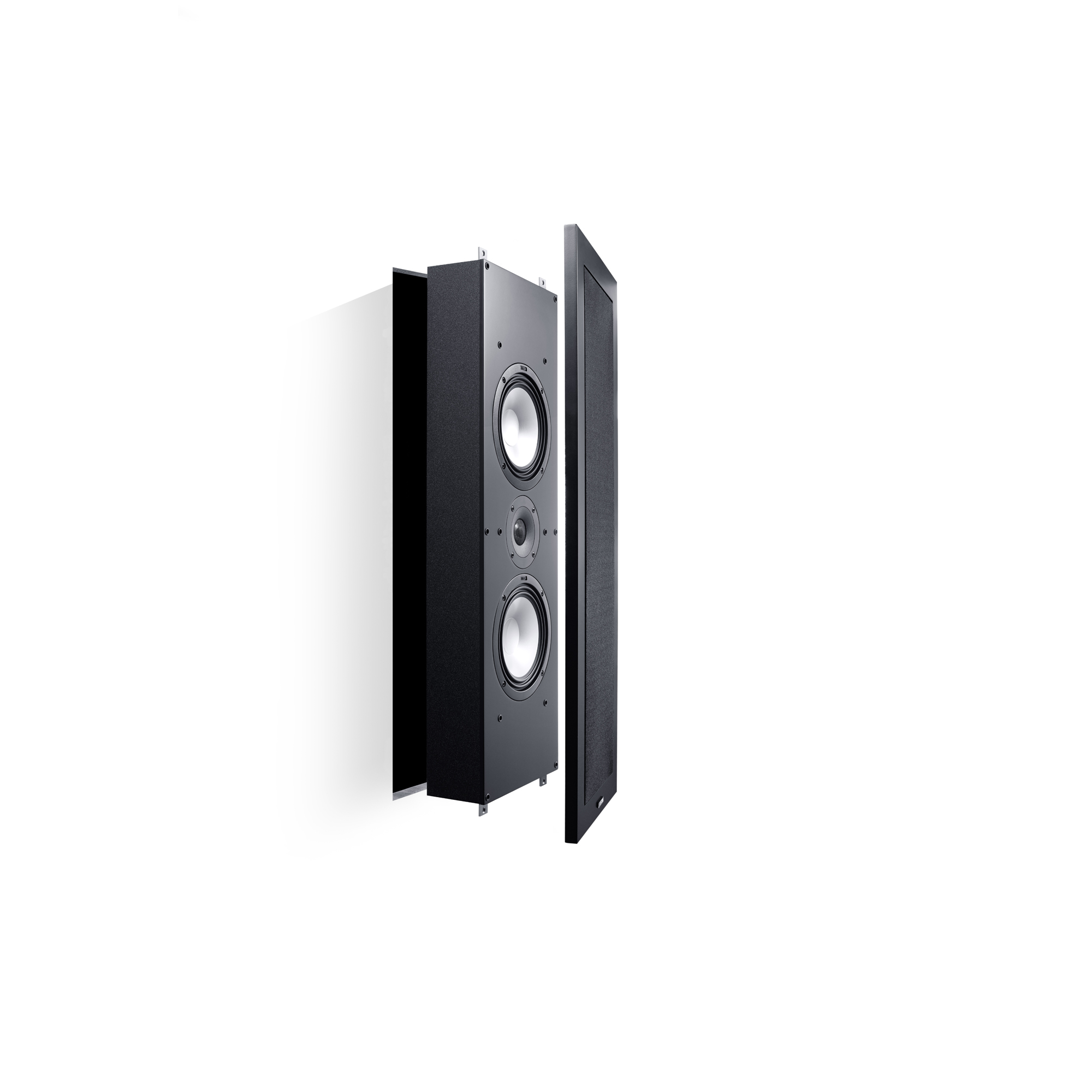

Discreet InWall installation

For those who want their audio system to be even slimmer and more discreet to suit the latest lifestyle trends, there is the convenient option of using the installation kit supplied to install the loudspeakers in the wall. This means they only project 2 cm from the wall.

Aluminium-manganese tweeter system

The ultra-light 25 mm aluminiummanganese dome with the wave guide integrated into the front plate has its origins in the great Canton HiFi Series and guarantees defined dispersion characteristics across his entire frequency range.

High quality front covers

The classic, white fabric cover is edged by a high gloss frame. This hides the technology and underlines the elegant appearance without disturbing the outstanding sound characteristics.

Solid connection terminal

For perfect, long lasting sound the high quality connection unit is fitted with robust screw terminals. Perfectly concealed in the cabinet (Hidden Connection), this allows it to be installed close to the wall.

Type	Center /Installation speaker
Engineering Principle	2-way Bass reflex system with passive membrane
Nom. /Music power handling	100 / 160 watts
Frequency response	35…40.000 Hz
Crossover frequency	3.000 Hz
Woofer	2 x 174 mm (6,8”), Aluminum (Wave surround)
Tweeter	1 x 25 mm (1”), aluminum-manganese
Nominal Impedance	4…8 ohms
Special Features	integrated wallmount mounting angle inclusive Fabric cover
Dimensions (WxHxD)	75 x 26 x 9.8 cm (29.5” x 10.2” x 3.9”)
Installation opening	22.4 x 70.4 cm (8.8” x 27.7”)
Installation depth	8.2 cm (3.2”)
Weight	6.9 kg
Packaging	18 x 82 x 35 cm (7,1″ x 32,3″ x 13,8″)
Weight including packaging	9,2 kg
