New York, April 2020:
Mytek announces shipping of Brooklyn AMP + a major upgrade of amazing Brooklyn AMP sound.
Brooklyn AMP+ retains the same type of sound with dynamic and precise transients and even and extended frequency response, but with way less low level distortion and cleaner natural, analog like character with deeper, larger soundstage.
Brooklyn AMP + features new faster transistors, cutting the so called “switching dead time” to low nanoseconds and faster and higher, 650kHz carrier clock. They both contribute to greatly improved low level detail and lower distortion. In addition the output filter frequency has been increased two fold for lighter highs and to better accommodate difficult loads.
The previous model of “Brooklyn AMP” has been discontinued and replaced with this new “Brooklyn AMP+” . Existing Brooklyn AMP owners can upgrade their units to Brooklyn AMP+ specs for $500. Please email Mytek for upgrade request.

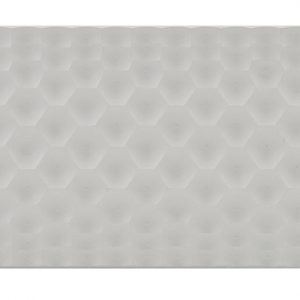

available in Silver Frost Matte

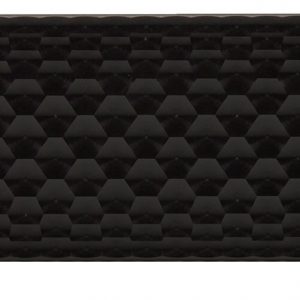

available in Black Frost Matte

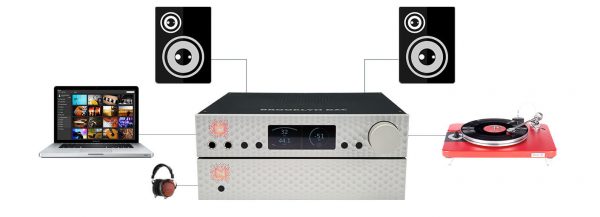

Brooklyn AMP+ is a reference power amplifier with signature Mytek sound – musical, detailed and transparent. Its dual mono design breaks the sound quality spell associated with Class D and proves a well executed Class D circuits can challenge the best Class A and sound amazing. Amplifier is packaged in miniature 1/2 rack enclosure and it’s small enough to fit in a briefcase, yet powerfull to drive the largest speaker systems. It’s designed to be used as regular stand alone power amplifier or to complement Brooklyn DAC for complete modern digital streaming and vinyl playback system.
Brooklyn AMP+ is another brand new, amazing sounding product from Mytek, launched at 2017 Munich HiFi Show. Mytek golden ear expertise was used to design world’s most likely best sounding Class D amplifier. Mytek engineers with the lead designer, Michal Jurewicz, have demonstrated that a carefully executed Class D can sounds like triode, with beautiful midrange and depth while maintaining deep bass and fast transient and detail. Mytek extensive expertise with DSD, technology similar to digital amplifiers was used in this project. This architecture allows for packing a lot of power (300W/ch) into small 1/2 rack chassis, small and light enough to be carried around in a briefcase. Unlike other established products on this site, Brooklyn AMP is subject to 30 day money back guarantee which will end when the first AMP reviews are published this Fall.
POWER RATINGS AT 1% THD:
at 16 Ohm – dual mono 2 x 130 W
at 8 Ohm – dual mono 2 x 250 W
at 4 Ohm – dual mono 2 x 300 W
at 2 Ohm – dual mono 2 x 400 W
Peak – dual mono 2 x 1200 W
OUTPUT SWING:
70 Vp / 140 Vpp (unloaded)
SNR: >121 dB
FREQUENCY RESPONSE -3dB: 10Hz – 30kHz
THD REGULAR USE: <0.01%
PROTECTION CIRCUITRY: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
DAMPING FACTOR: >400
DC POWER ON TRIGGER: 12VDC minijack
WORLDWIDE POWER SUPPLY: 100-240VAC 50/60 Hz
DIMENSIONS: WxDxH=8.5×9.5×1.74”
=216x241x44mm
WEIGHT: 6lbs, 3kg
WARRANTY: 2 years
Download Brooklyn AMP Brochure
|
