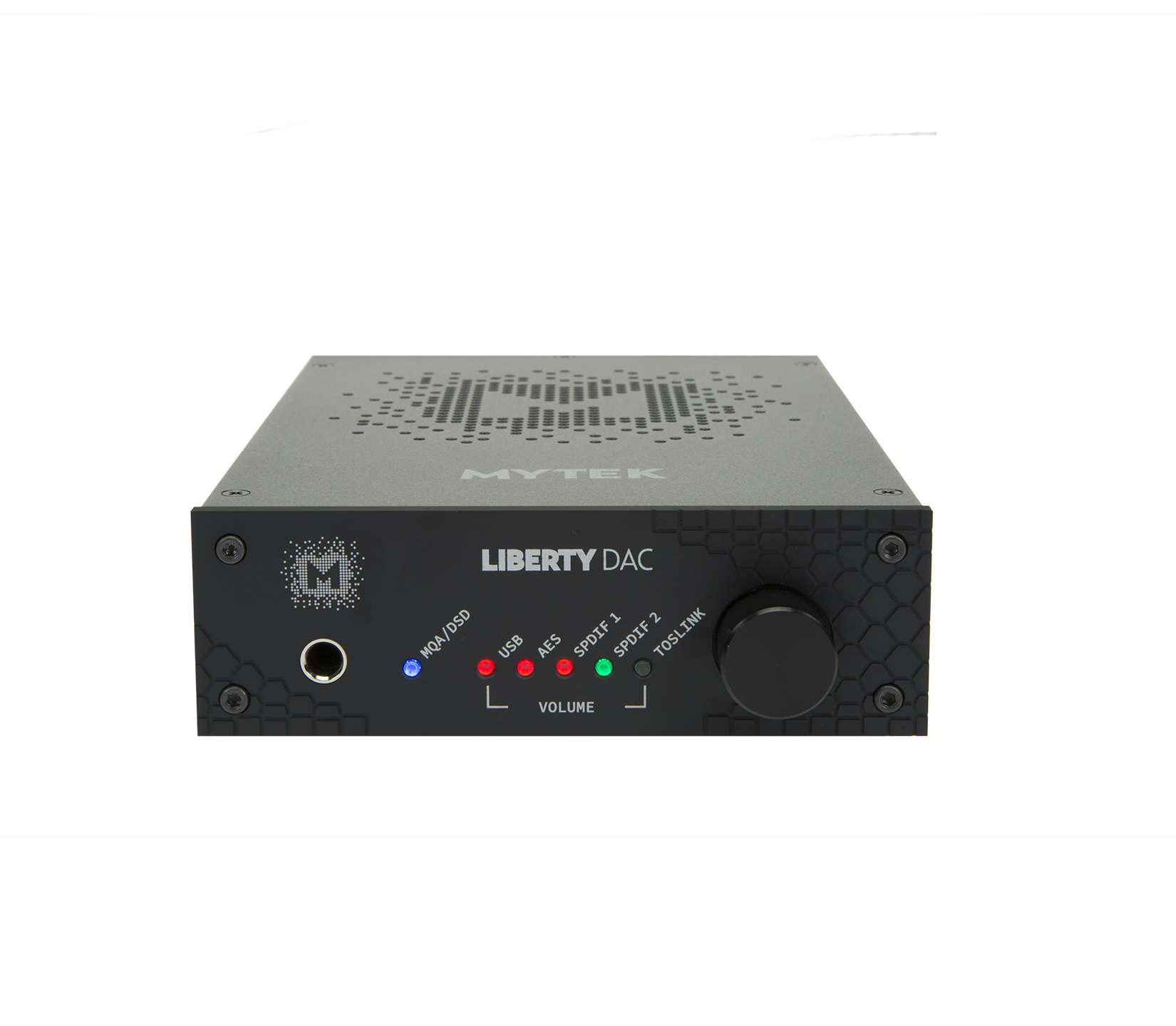

LIBERTY DAC

Description

Liberty DAC is the Mytek newest general purpose PCM/MQA/DSD USB2 DAC designed for high quality music playback and monitoring of all digital audio formats including all high resolution formats. The DAC features several digital inputs, digital volume control and unbalanced as well as balanced audio outputs and a high performance headphone amplifier. Designed as a little brother of Brooklyn DAC, Liberty DAC provides robust performance in small portable 1/3 rack package. Liberty DAC is shipping now.

SPECIFICATIONS :

CONVERSION:

up to 384k, 32bit PCM, native DSD
up to DSD256, DXD, 127dB Dynamic Range

MQA HI-RES DECODER:

built in certified hardware
MQA™ decoder

DIGITAL INPUTS:

USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP)

ANALOG OUTPUTS:

1 pair of unbalanced RCA, 1 pair of balance TRS, TRS To XLR Metropolis Cable can be added as option

HEADPHONE AMPLIFIER:

Reference High Current, High transient Headphone Amp, 300mA, 3 Watts, single unbalanced headphone jack, designed to drive hard to drive headphones, 0.1 Ohm impedance

CLOCK GENERATOR:

Low noise with 10ps of jitter

FIRMWARE:

Upgradable via USB via Mytek Control panel

OPTIONAL DC/BATTERY POWER INPUT:

12VDC

DIMENSIONS:

WxDxH=5.5×8.5×1.74”=140x216x44mm

WEIGHT:

3lbs, 1.5kg

WARRANTY:

2 years

Drivers, Firmware and Manuals

are available on the Support Page

External Power Supply Options

Mytek Liberty DAC (also Brooklyn DAC and ADC) is equipped with external 12VDC power supply input. There is some sound quality improvement (particularly deeper base and better soundstage) when a large external power supply is used. To have an effect the power supply has to be substantially (5-10 times) larger than the 30W internal power supply. Here are some option which have been used by ur customers. Mytek has not yet conducted testing of either of these.

There is more infomation on the subject at Computer Audiophile for example: Linear Power Supply for Brooklyn

Sbooster

Brooklyn Bridge
