Description

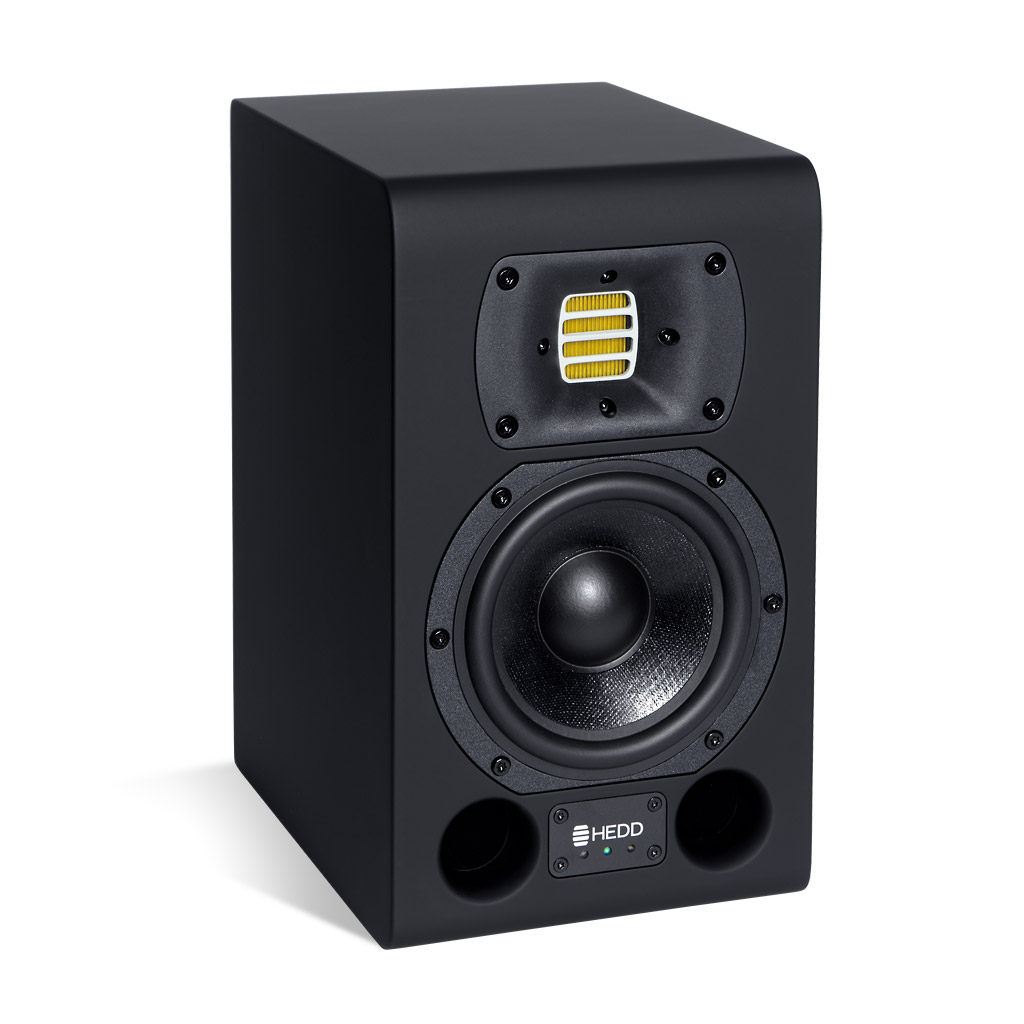

The Type 05 model is a real multitasker. Its strong performance, digital connectivity, and compact size turn it into the ideal choice for mobile broadcast stations, recording studios, multichannel-setups, and VoIP conferences. The Type 05 is based on a 2-way-system that provides a solid fundament and a high degree of accuracy in the frequency range between 45Hz and 50kHZ by coordinating the interplay between a 6“-woofer and a high-resolution Air Motion Transformer (HEDD AMT).

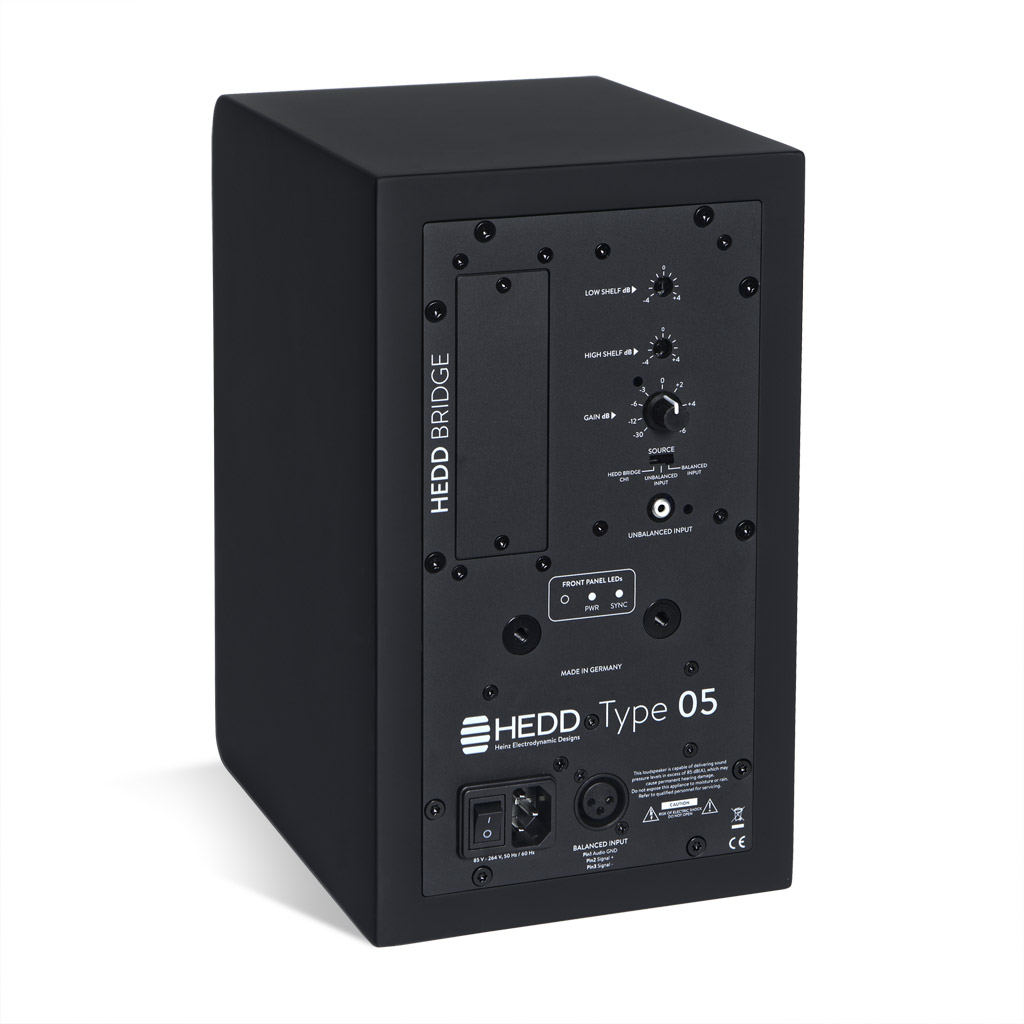

Type 05 is, like all of our Series ONE studio monitors, additionally equipped with a modular connection system. Besides standard analog XLR and RCA connections, the Type 05 features an empty card slot that we have designed to read Dante (Audio-over-IP) and other digital audio protocols.
Technical Data
| Drivers | |
| Woofer | 1 |
| Basket Ø | 6″ (152mm) |
| Voice coil Ø | 1.5″ (38mm) |
| Cone material | UHC cone (Ultra Honeycomb Composite) |
| Tweeter | 1 |
| Type | HEDD AMT (HEDD Air Motion Transformer) |
| Equiv. Diaphragm Ø | 2″ (56mm) |
| Input connectors | |
| Analog balanced / unbalanced | XLR / RCA |
| Digital/HEDD Bridge Options | Dante / Audio-over-IP |
| General data | |
| Amplification (ICEpower®) | 2 x 50W |
| Input gain | -30dB … +6dB |
| High Shelf EQ > 2kHz | ±4dB (at 20kHz) |
| Low Shelf EQ < 200Hz | ±4dB (at 50Hz) |
| Frequency response | 45Hz – 50kHz |
| THD 90dB/1m > 100Hz | ≤0.5% |
| Max SPL sine wave 100Hz – 3kHz /1m | ≥103dB |
| Max SPL peak per pair at 1m | ≥111dB |
| Crossover frequencies | 2.3kHz |
| Input impedance balanced / unbalanced | 10kΩ / 47kΩ |
| Weight | 6.7kg |
| Height x Width x Depth | 308mm x 180mm x 228mm |
| Warranty | 2 years |
Lineariser® Plugin
With the HEDD Lineariser® VST/AU/AAX plugin, we have created a unique solution for one of the most challenging problems in loudspeaker designing: Linear Phase Response. The Lineariser® flattens both, the phase and frequency response of your HEDD monitors in unparalleled quality and without any DSP involved!
Download the Lineariser® and listen for yourself.
The HEDD Lineariser®
System Requirements:
Windows (7, 8, 8.1, 10, x86, x64) // Mac OSX 10.8 or newer
The Lineariser® is available in VST, AU, and AAX format
Installation and User´s Guide
PDF
Downloads
 |
 |
 |
| Manual // PDF | Product Sheet // PDF | Leaflet // PDF |
