Description

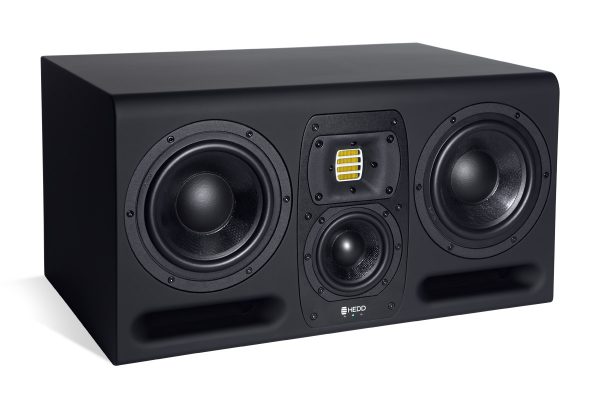

The HEDD Type 30 is an exceptional midfield monitor that will satisfy all your professional studio needs and desires. Whether as a full range audio monitor in an elegant studio space or in broadcasting contexts, this 3-way-system based monitor is an ideal player in the most diverse fields of application. The impressive technological facts alone speak for themselves: two horizontally aligned 7”-woofers, 4”-midrange woofer, the HEDD Air Motion Transformer tweeter, and nothing less than 4×300 watts amplification create an ultra-wide frequency range from 30Hz to 50khz. In the course of the Type 30’s development, the acoustic accuracy that this constellation of components translates into has fascinated us: in addition to being super solid and having an extremely high fidelity in the bass and mid range reproduction, the HEDD AMT produces vivid and uncolored high frequency material. Let us assure you: this is one fine piece of gear.

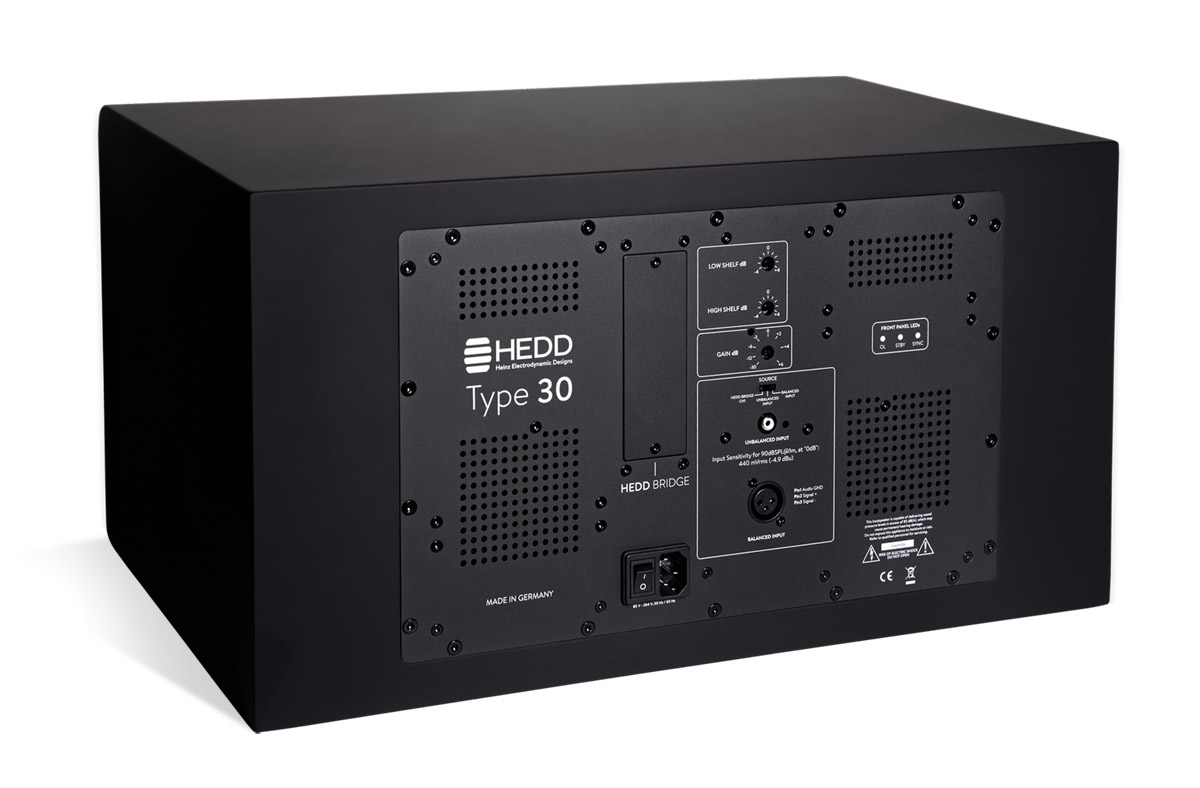

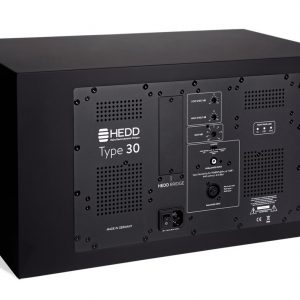

As our two smaller studio monitors, the Type 30 offers XLR and RCA connections as well as a free input-card system that can receive the HEDD Bridge modules that we also offer. These modules are designed to read various digital audio protocols, among them the Dante / Audio-over-IP standard.
Technical Data
| Drivers | |
| Woofer | 2 |
| Basket Ø | 7″ (182mm) |
| Voice coil Ø | 2 ” (50mm) |
| Cone material | UHC cone (Ultra Honeycomb Composite) |
| Midrange | 1 |
| Basket Ø | 4″ (120mm) |
| Voice coil Ø | 1.25 ” (32mm) |
| Cone material | UHC cone (Ultra Honeycomb Composite) |
| Tweeter | 1 |
| Type | HEDD AMT (HEDD Air Motion Transformer) |
| Equiv. Diaphragm Ø | 2″ (56mm) |
| Input connectors | |
| Analog balanced/ unbalanced | XLR / RCA |
| Digital/HEDD Bridge Options | Dante / Audio-over-IP |
| General data | |
| Amplification (ICEpower®) | 4 x 300W |
| Input gain | -30dB … +6dB |
| High Shelf EQ > 2kHz | ±4dB (at 20kHz) |
| Low Shelf EQ < 200Hz | ±4dB (at 50Hz) |
| Frequency response | 32Hz – 50kHz |
| THD 90dB/1m > 100Hz | ≤0.5% |
| Max SPL sine wave 100Hz – 3kHz /1m | ≥116dB |
| Max SPL peak per pair at 1m | ≥126dB |
| Crossover frequencies | 250Hz / 2.5kHz |
| Input impedance balanced / unbalanced | 10kΩ / 47kΩ |
| Weight | 22.8kg |
| Height x Width x Depth | 280mm x 530mm x 338mm |
| Warranty | 2 years |
Lineariser® Plugin
With the HEDD Lineariser® VST/AU/AAX plugin, we have created a unique solution for one of the most challenging problems in loudspeaker designing: Linear Phase Response. The Lineariser® flattens both, the phase and frequency response of your HEDD monitors in unparalleled quality and without any DSP involved!
Download the Lineariser® and listen for yourself.
The HEDD Lineariser®
System Requirements:
Windows (7, 8, 8.1, 10, x86, x64) // Mac OSX 10.8 or newer
The Lineariser® is available in VST, AU, and AAX format
Installation and User´s Guide
PDF
Downloads
 |
 |
 |
| Manual // PDF | Product Sheet // PDF | Leaflet // PDF |
Reviews
 |
»So incredible« Review: tapeop.com | Published: 03/2017 |
 |
»Professionelle Abhörmöglichkeit auf hohem Niveau« Review: Sound&Recording | Published: 10/2016 |
 |
»Hören auf höchstem Niveau« Review: www.amazona.de | Published: 02/2017 |
 |
»brachial laut und trotzdem sauber«! Download PDF | www.studio-magazin.de | Published: 12/2016 |

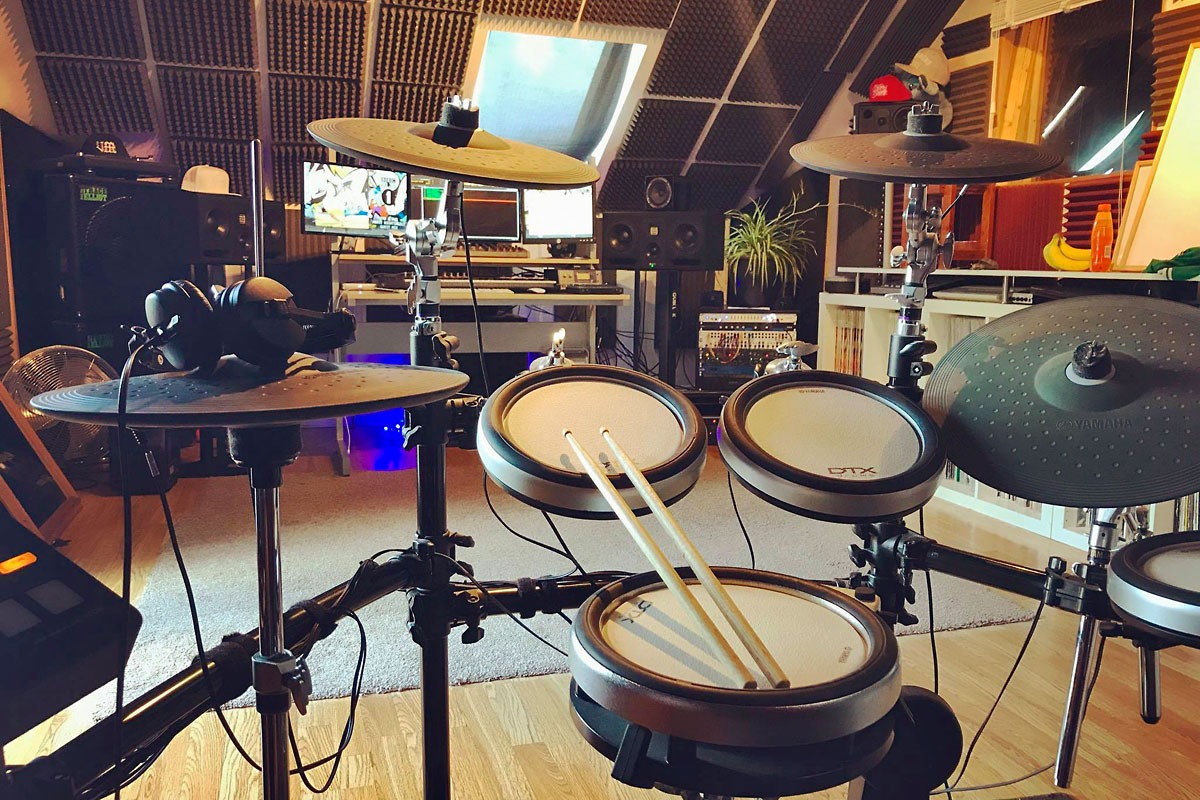

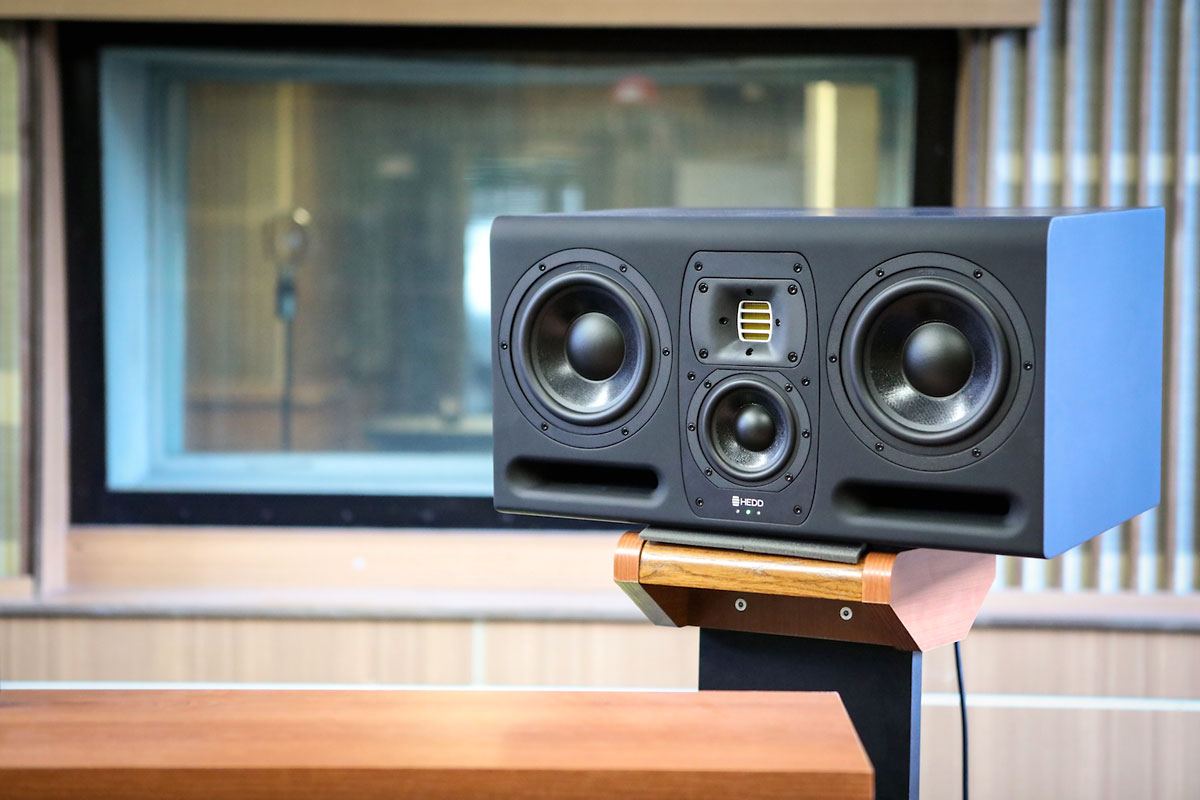

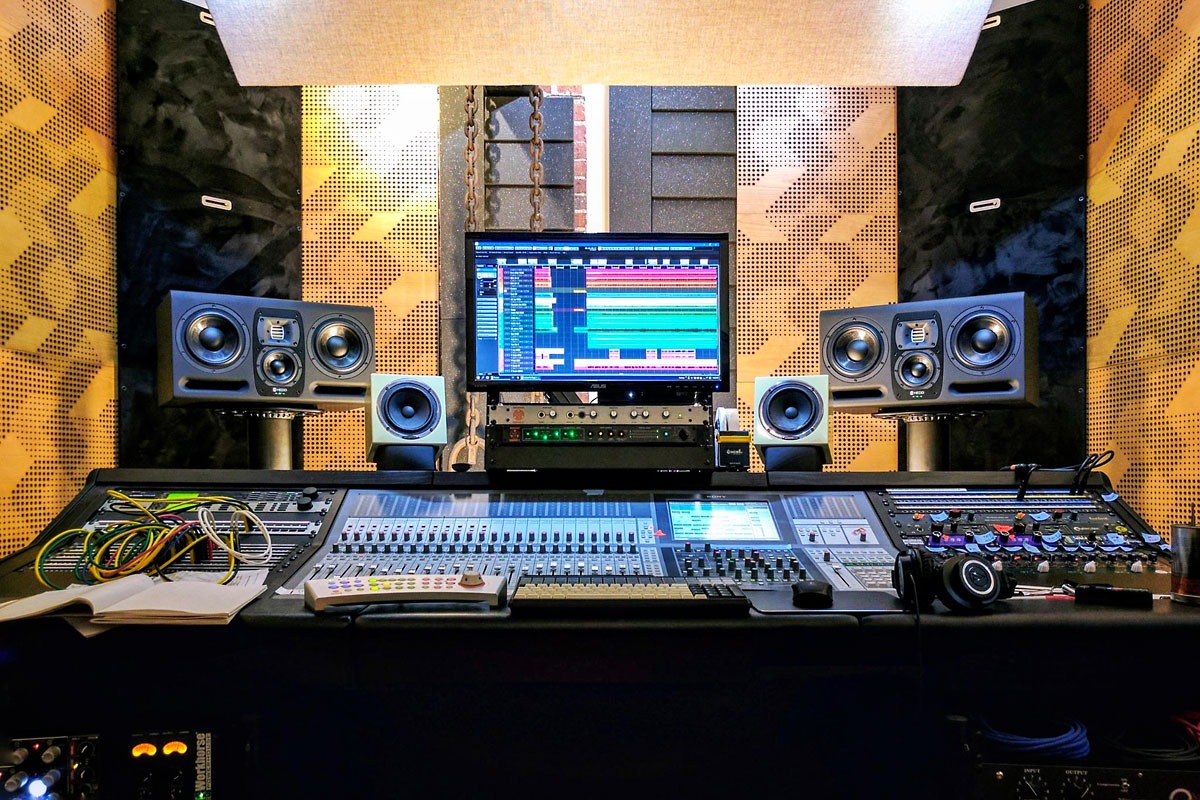

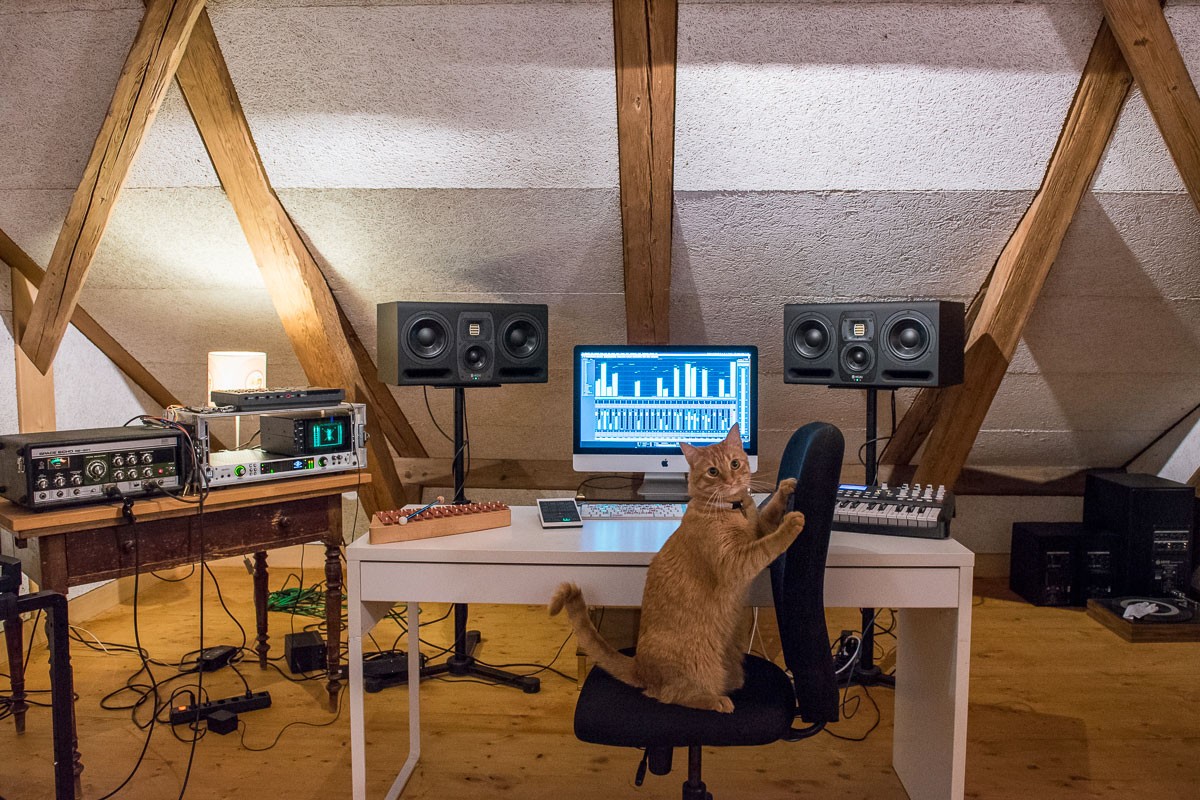

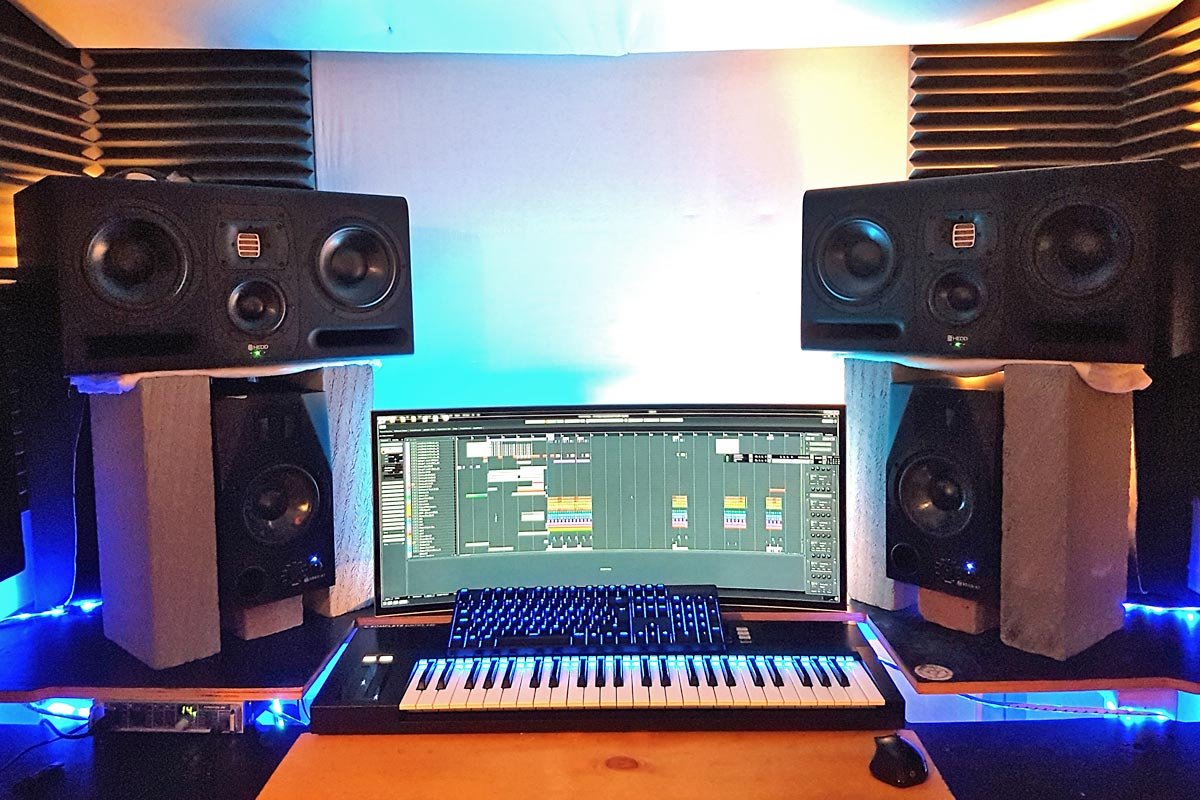

Type 30 Gallery
